APPLICATION - Drone
Unmanned aircraft, referred to as "UAV", is an unmanned aircraft operated by radio remote control equipment and self-contained program control device. In addition to military applications, UAVs are widely used in civil fields, especially unmanned multi rotor aircraft. The application fields include map mapping, disaster monitoring, film shooting, express logistics, etc.

The LPS series slip ring of JINPAT is composed of separated rotor and contact brush.
The rotor part can be equipped with holes for shaft installation, which is convenient for customers to install and use. According to the use conditions, there are 2-15 channels to choose from, the maximum speed can reach 2000rpm, the single channel current is more than 2A, and the signal transmission is stable.
Through the use of this series of slip rings, the functions of efficient maneuvering and rapid picture capture of UAV under high speed conditions are realized.
Typical products include LPS-06A/B,and LPS-12A/12B.

Features and advantages:
1. The standard module can be loaded to meet the transmission of power and signal at the same time 2. Advanced fiber brush technology is adopted and maintenance free and lubricating oil is not required 3. Multi point contact of each circuit, low contact pressure and low contact wear 4. Special groove design is adopted with smooth rotation and low electrical noise 5. American military surface gold plating process is adopted to ensure super long service life 6. The overall dimensions are diverse and suitable for different customer needs 7. Small size and easy installation 8. Up to 30 kinds of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc, with 360 ° unrestricted rotation

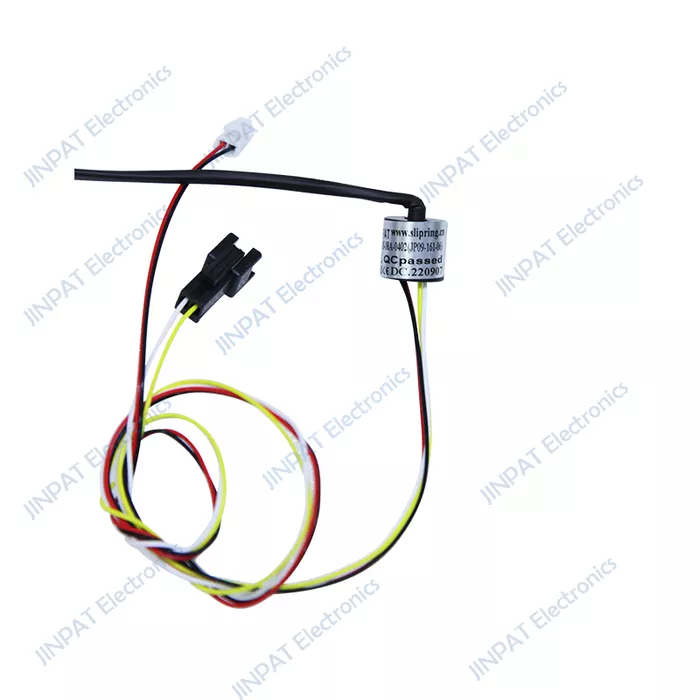

JINPAT: Specializing in Supplying Slip Rings for Drones and Handheld Stabilized Gimbals

2023-08-05
In recent years, drones and handheld stabilized gimbals have become highly popular electronic consumer products. JINPAT,as a leading supplier of rotational conductive solutions, offers a wide range...

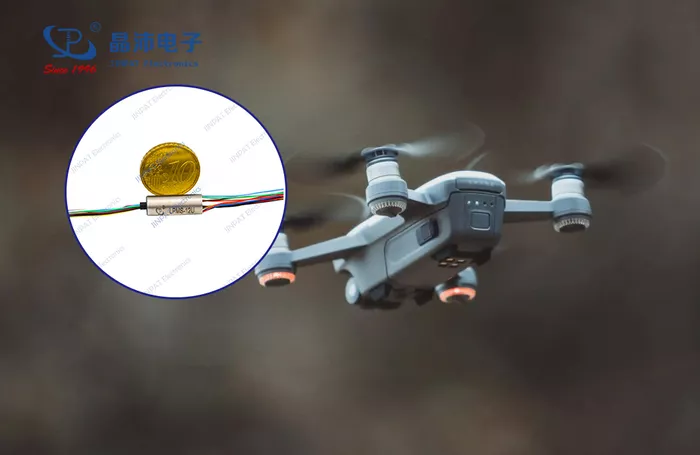

Slip rings required for converting professional drones into disaster relief lighting drones

2023-04-03
Recently, a major earthquake occurred inTurkey, causing extensive casualties. Professional rescue teams from multiplecountries came to participate in the relief work. At the rescue site, therescue ...

Introduction of JINPAT Slip Rings for UAVs

2022-09-30
JINPAT Electronics, is a specialist in slip ring R&D, production, sales and service. JINPAT also plays a key role in providing rotary solutions for UAVs in both military field and commercial area.

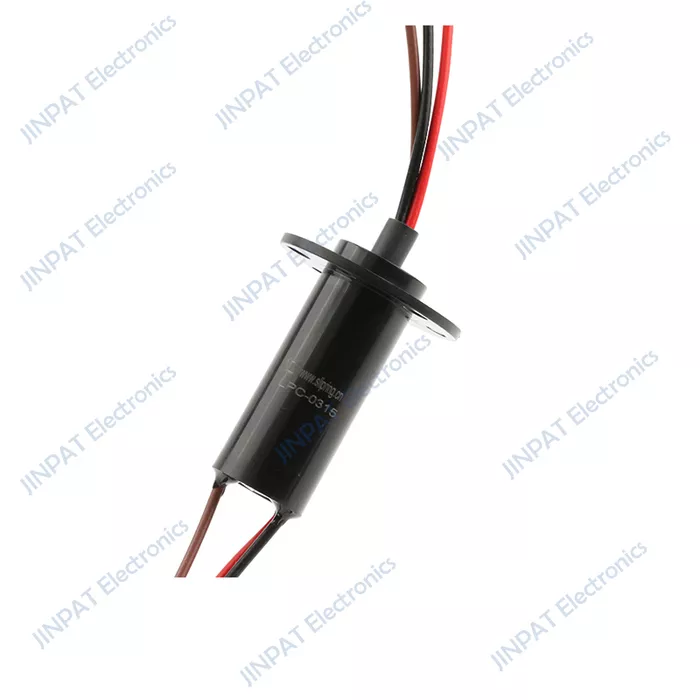

JINPAT Electronics Slip Ring Manufacturer for Small-Size UAVs

2022-07-11
With over 20 years of experience in the slip ring industry, JINPAT Electronics has developed numerous slip ring model that can answer the harsh requirements in the aviation and military field.

JINPAT Electro-optical Slip Rings for UAVs

2022-06-03
There are many standard slip ring models by JINPAT. As for UAVs and drones, JINPAT recommend our electro-optical slip ring models.

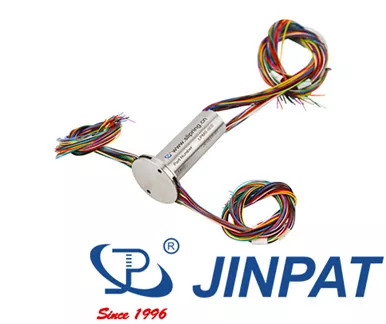

JINPAT LPMS Super Miniature Slip Rings Brief Introduction

2021-08-31
JINPAT Super Miniature Slip Ring Custom Solutions

JINPAT Super Miniature Slip Rings for UAVs

2021-03-31
JINPAT is a slip ring manufacturer with over 25 years’ experiences. JINPAT values innovation and creativity. JINPAT is always the pioneer in spotting needs in the slip ring market. With years of ef...

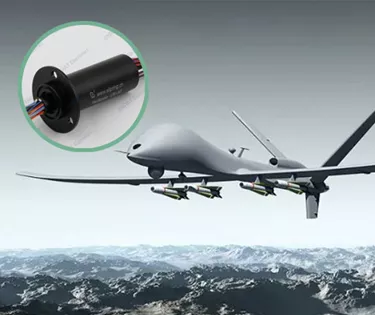

UAVs & UUVs
