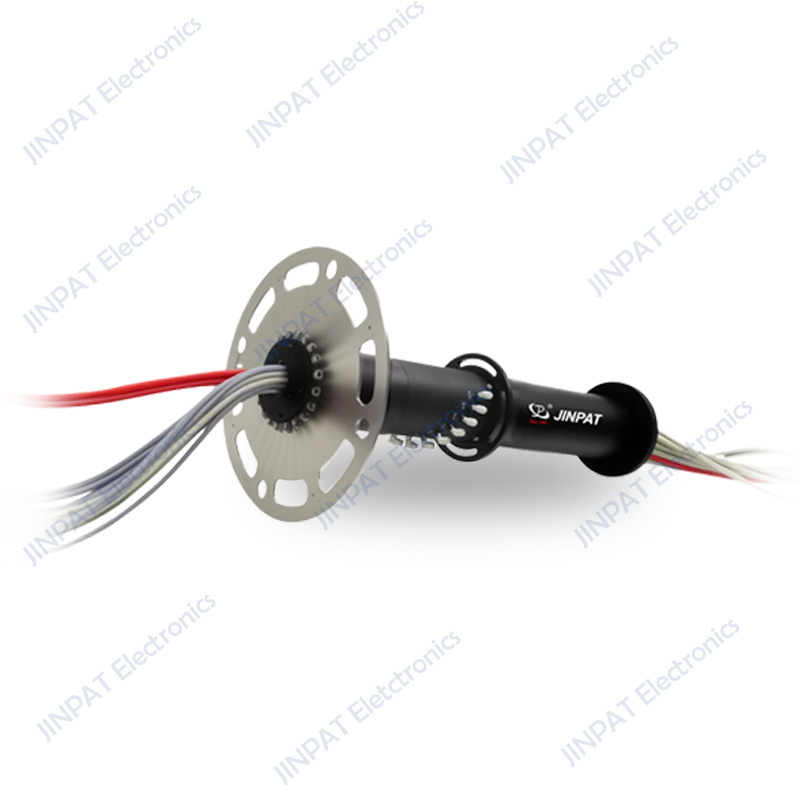

Rotary Unions (Can Be Integrated with Electricity)

Number of Circuits 2/4/6/8/10/12
Current 2A each circuit or higher
Insulation Resistance ≥500VAC@50Hz
Wire Length 250mm(optional)
Voltage 240VAC/DC
Consult immediately
Model ListInstallationReview(0)

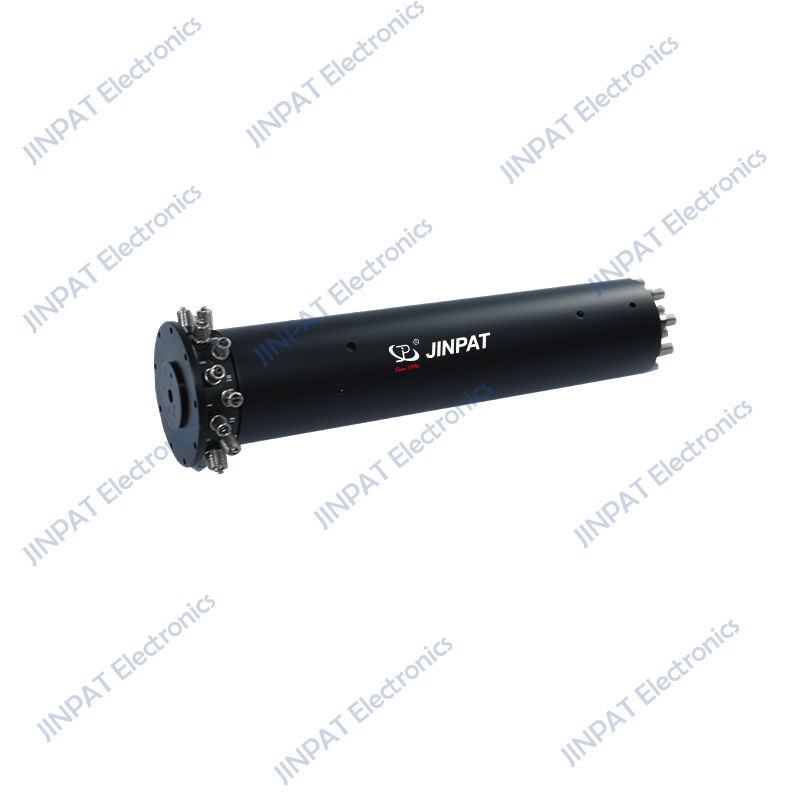

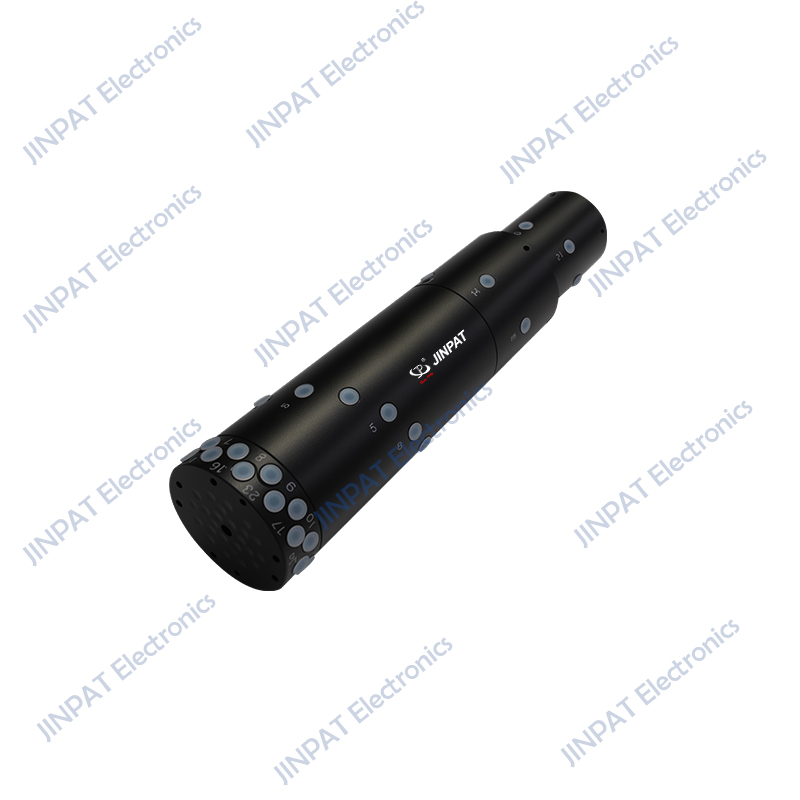

The LPP rotary unions can perform rotation of 360 degrees. The medium includes inert gas such as compressed air, steam, vacuum, nitrogen, hydrogen, etc. It can integrate slip ring to transport various control signals. The sealing surface and sealing ring are made of special materials, with the advantages of wear resistance, long life, corrosion resistance, and no leakage. Customers can install LPP rotary unions independently according to the application environment.


Features:

◎Continuable medium: compressed air, nitrogen, and other inert gases;

◎Small size, light weight, low torque

◎Integrated power, switching signal, Ethernet, USB, industrial bus, sensor and other signals;

◎Customized rotary joint parameters and integrated slip ring can be customized according to customer requirements;

◎The joint and pipe diameter can be customized according to customer requirements;


Optional

◎Inner diameter & Outer diameter/Number of circuits/Current & Voltage/Wire length/Housing material and color/Protection level/Signal and power can be transmitted separately or in combination



PS:Standard Pneumatic Rotary Unions   (2~36 channels)(Electrical Slip Rings Excluded)

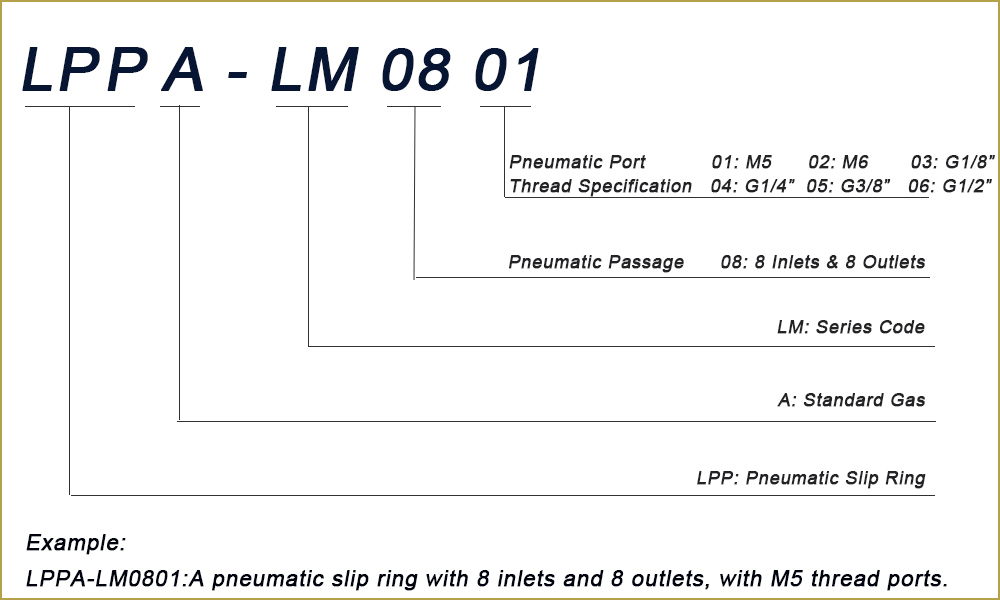

Model Code

Number of

Circuits

MediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL06-02A3Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*47≤0.6N·m

2000万以上

≥20 million

2-3


LPPL06-04A4Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*63≤0.8N·m

2000万以上

≥20 million

2-3


LPPL06-06A6Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*79
≤1.0N·m

2000万以上

≥20 million

2-3


LPPL06-08A8Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*95≤1.3N·m

2000万以上

≥20 million

2-3


LPPL06-10A10Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ50*122≤1.6N·m

1000-2000万

10~20 million

2-3


LPPL06-12A12Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ50*141
≤2.0N·m

1000-2000万

10~20 million

2-3


LPPL06-16A16Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ56*204.5≤2.5N·m

1000-2000万

10~20 million


2-3


LPPL010-24A24Compressed Air10'-0.15Kpa~1Mpa0~30rpmG1/8φ10*φ145*446≤25N·m

1000万以上

≥10 million


5-6


LPPL018-30A30Compressed Air18'-0.15Kpa~1Mpa0~20rpmG1/8φ18*φ170*627≤30N·m

1000万以上

≥10 million

6-8


LPPL021-36A36Compressed Air21'-0.15Kpa~1Mpa0~10rpmG3/8φ21*φ220*842≤30N·m

1000万以上

≥11 million

6-8


Pneumatic Rotary Unions with Through Bore Design (φ15-φ150) (Electrical Slip Rings Excluded)
Model CodeNumber of CircuitsMediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL015-08A8Compressed Air15
0~1Mpa0~500rpmG1/4φ15*φ135*265≤10N·m

2000万以上

≥20 million

LPPL025-02A2Compressed Air250~0.6Mpa0~20rpmG3/8φ25*φ98*116≤5N·m

2000万以上

≥20 million

LPPL040-02A2Compressed Air400~0.6Mpa0~5rpmG1/8φ40*φ119*94.2≤8N·m

2000万以上

≥20 million

LPPL060-01A1Compressed Air600~1Mpa0~1rpmG3/4φ60*φ216*126≤10N·m

2000万以上

≥20 million

LPPL090-02A2Compressed Air900~0.8Mpa0~20rpmG1/2φ90*φ206*122.6≤20N·m

2000万以上

≥20 million

LPPL120-02A2Compressed Air1200~0.6Mpa0~10rpmG1/2φ120*φ230*137≤30N·m

2000万以上

≥20 million

LPPL150-01A1Compressed Air1500~0.8Mpa0~10rpmG1/2φ150*φ265*116≤30N·m

2000万以上

≥20 million

Hydraulic Rotary Unions (Electrical Slip Rings Excluded)
Model Code

Number of   Circuits

MediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL000-02L2
Water/
0~0.5Mpa0~120rpmG1/4,M6φ67*100≤80N·m

undefined

≥10 million

4-5
LPPG014-02L2Hydraulic Oil140~25Mpa0~10rpmG1/2φ112*φ14*149≤200N·m

undefined

≥10 million

LPPG018-04L4Hydraulic Oil180~25Mpa0~25rpmG1/2φ135*φ18*232≤200N·m

undefined

≥10 million

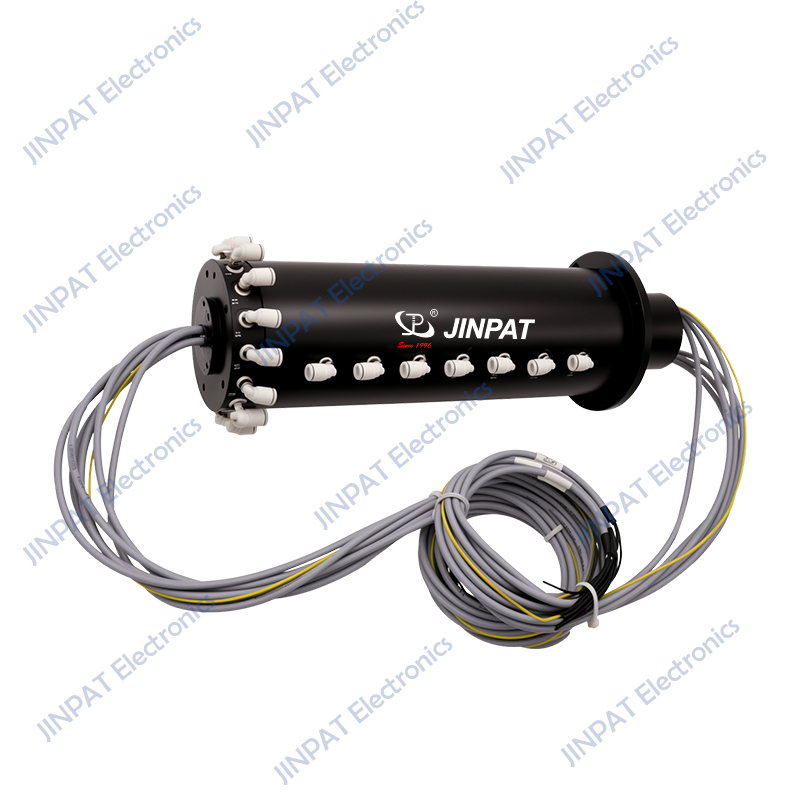

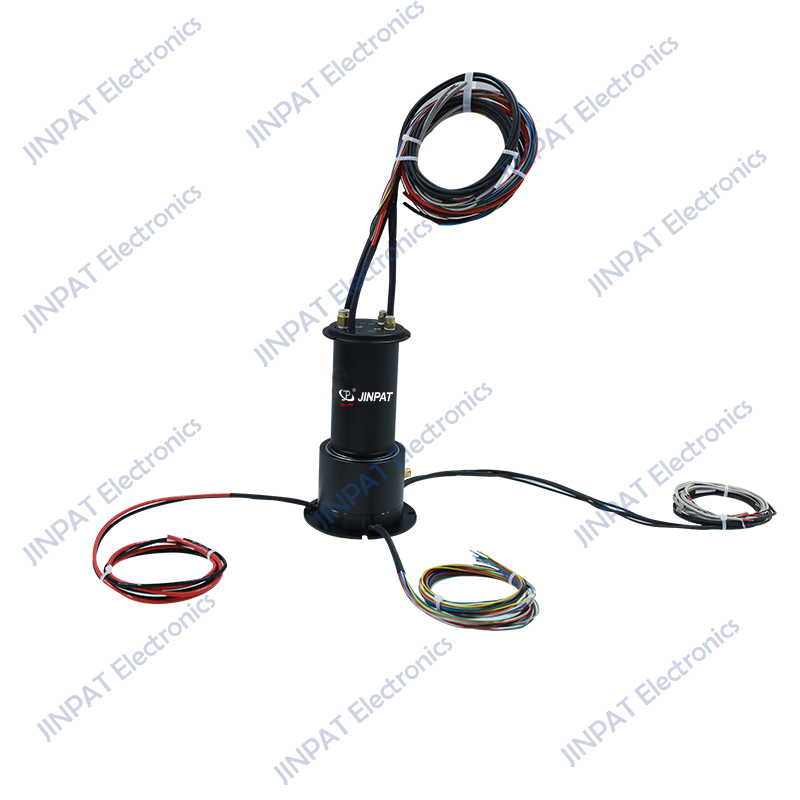

Electric Pneumatic Integrated Slip Rings
Model Code

Number of

Circuits

MediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL000-02A-0407-1505-32S-E2-FO012
Compressed Air/
0~0.6Mpa0~10rpmG3/8φ140*494.7≤8N·m

undefined

≥10 million

LPPL000-08A-1219-0410-54028

Compressed

  Air

/0~0.6Mpa0~1rpm

M5

G1/4

φ164*441≤8N·m

undefined

≥10 million

LPPL000-16A-660116Compressed Air/0~1Mpa0~75rpmM6φ106*575≤5N·m

undefined

≥10 million



1. The mounting position of the slip ring is matched with the equipment. It is necessary to connect the air pipe at the rotor end to ensure that there is no leakage.

2. Debug the concentricity of the rotor before installation and ensure the smooth rotation of the slip ring.

3. The stator is screwed into the anti-rotation rod through the anti-rotation hole to stop rotation, and can also be customized according to customer requirements.


Precautions for Installation of Rotary Joints:

1. Rotary joints should prevent impact and drop during delivery and storage to avoid damage to the interface and internal parts.

2. The bolts for fixing need to be loosened.

3. When installing the rotary joints, it should be noted that the thread direction of the inner and outer tubes corresponds to the rotation direction of the drum, and the thread rotation direction of the inner and outer tubes should also be the same.

4. The inlet and outlet of the rotary joint should be connected directly to the hose as much as possible. The transmission
