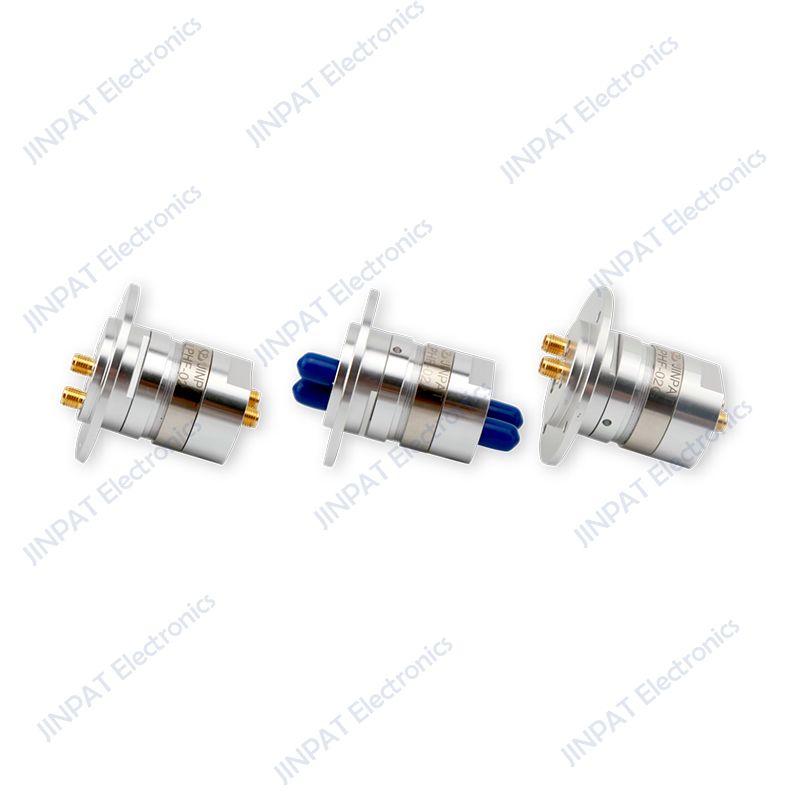

High Frequency Rotary Joints

share
copy Link
Facebook
X
LinkedIn
Features:
◎ Up to 4 circuits (model with more circuits is customizable)
◎ Frequency up to 50GHz
◎ Compact structure with low interference
◎ Transmit multifarious signals simultaneously
◎ Ultra low insertion loss and transmission fluctuation
◎ Long service life and maintenance-free

Number of Circuits 1/2/3/4(optiongal)
Insertion loss max 0.25dB(Minimum)
Frequency range 1CH:≤50GHz 2CH:≤18GHz
Inserfaces SMA/N/3.5/2.92/2.4/F
VSWR,max 1.2(Minimum)
Peak power,max 10KW(Maximum)
Consult immediately
Model ListInstallationReview(0)


High Frequency Rotary Joint is applied in constant rotating devices. It transmits high frequency signal and high speed signal from stationary part to rotary part. This rotary joint is able to transfer analog signals and high-speed digital signals with frequencies up to 500MHz-50GHz. It is compact in structure, stable in performance with good shielding effect, and low interference. Besides, high frequency slip ring can be easily installed in other applications. This series consists of high frequency slip ring and high frequency electric hybrid slip ring



High Frequency Slip Rings

Channel

Model

Freq. Range

VSWR

Insertion loss

Dimensions (Flange*OD* Length)

Details

Single-Channel

Mini   (Direct Coaxial)

LPCC-01A

DC-3GHz≤1.5≤0.4dB(excluding cables)Ø14.60*Ø5.4*43.6详情.png‍

LPCC-02A


LPCC-02A-N


LPCC-01A-6G

DC-6GHz≤1.5≤0.5dB(excluding cables)Ø14.60*Ø5.4*43.6详情.png

LPCC-02A-6G


LPCC-01B

≤1.4≤0.3dB(excluding cables)Ø6.5×18 mm (Flangeless)详情.png

LPCC-01C

DC-12GHz≤1.6≤0.6dB(excluding cables)Ø25*Ø14*44.86详情.png

LPCC-01D

≤1.0dB(excluding cables)Ø14.60*Ø8*30.46详情.png
Medium (No Coaxial)

LPHF-01A


LPHF-01C


LPHF-01H


LPHF-01E


LPHF-01K


LPHF-01F


LPHF-01G


LPHF-01L

2-Channel

LPHF-02A

CH1：DC-4.5GHz

CH2：DC-4.5GHz

CH1:≤1.2

CH2:≤1.5

CH1：≤0.25dB

CH2：≤0.5dB


LPHF-02A-04

Ø52.9*Ø32*56.4/

LPHF-02A-14(IP54)

LPHF-02A-05

CH1：DC-30GHz

CH2：DC-4.5GHz

CH1：≤1.5

CH2：≤1.5

CH1：≤1.0dB

CH2：≤0.5dB

LPHF-02A-07

CH1：DC-18GHz

CH2：DC-10GHz

CH1：≤1.5

CH2：≤2.2

CH1：≤0.6dB

CH2：≤1.5dB

LPHF-02B

CH1：DC-18GHz

CH2：DC-4GHz

CH1：≤1.5

CH2：≤1.5

CH1：≤0.9dB

CH2：≤0.5dB

LPHF-02C

CH1：DC-18GHz

CH2：DC-13GHz

CH1：≤1.5

CH2：≤2.0

CH1：≤1dB

CH2：≤2dB

LPHF-02D

CH1：DC-18GHz

CH2：DC-18GHz

CH1：≤1.75

CH2：≤4.5

CH1：≤1.0dB

CH2：≤3.0dB

LPHF-02E

CH1：DC-8GHz

CH2：DC-8GHz

CH1：≤1.5

CH2：≤1.5

CH1：≤0.7dB

CH2：≤0.7dB

LPHF-02G

CH1：≤1.3

CH2：≤2.2

CH1：≤0.4dB

CH2：≤0.8dB

LPHF-02F

CH1：DC-18GHz

CH2：DC-13GHz

CH1：≤1.5

CH2：≤2.0

CH1：≤0.9dB

CH2：≤1dB

LPHF-02W

CH1：DC-18GHz

CH2：DC-10GHz

CH1：≤1.5

CH2：≤2.4

CH1：≤0.6dB

CH2：≤1.5dB

3-ChannelLPHF-03A

CH1：DC-4GHz

CH2：DC-4GHz

CH3：DC-4GHz

CH1：≤1.6

CH2：≤1.6

CH3：≤1.6

CH1：≤1.0dB

CH2：≤1.0dB

CH3：≤1.0dB

Ø56*Ø42*122.7
LPHF-03B

CH1：DC-3GHz

CH2：DC-3GHz

CH3：DC-3GHz

CH1：≤1.7

CH2：≤1.7

CH3：≤1.7

CH1：≤0.75dB

CH2：≤0.75dB

CH3：≤0.75dB

4-ChannelLPHF-04A

CH1：DC-4GHz

CH2：DC-4GHz

CH3：DC-4GHz

CH4：DC-4GHz

CH1：≤1.3

CH2：≤1.5

CH3：≤1.5

CH4：≤1.5

CH1：≤1.0dB

CH2：≤1.0dB

CH3：≤1.0dB

CH4：≤1.0dB

LPHF-04D

CH1：DC-4GHz

CH2：DC-4GHz

CH3：DC-4GHz

CH4：DC-4GHz

CH1：≤1.6

CH2：≤1.6

CH3：≤1.6

CH4：≤1.6

CH1：≤1.0dB

CH2：≤1.0dB

CH3：≤1.0dB

CH4：≤1.0dB

5-ChannelLPHF-05D

CH1：DC-5.25GHz

CH2：DC-5.25GHz

CH3：DC-5.25GHz

CH4：DC-5.25GHz

CH5: DC-5.25GHz

CH1：≤2.0

CH2：≤2.0

CH3：≤2.0

CH4：≤2.0

CH5：≤2.5

CH1：≤1.5dB

CH2：≤1.5dB

CH3：≤1.5dB

CH4：≤1.5dB

CH5：≤1.5dB

6-ChannelLPHF-06C

CH1：DC-4.6GHz

CH2：DC-4.6GHz

CH3：DC-4.6GHz

CH4：DC-4.6GHz

CH5：DC-4.6GHz

CH6：DC-4.6GHz

CH1：≤1.5

CH2：≤1.5

CH3：≤1.5

CH4：≤1.5

CH5：≤1.5

CH6：≤1.5

CH1：≤1.5dB

CH2：≤1.5dB

CH3：≤1.5dB

CH4：≤1.5dB

CH5：≤1.5dB

CH6：≤1.5dB

Ø56*Ø42*164.5‍


LPHF-06E

CH1：DC-4GHz

CH2：DC-4GHz

CH3：DC-4GHz

CH4：DC-4GHz

CH5：DC-4GHz

CH6：DC-4GHz

CH1：≤1.3

CH2：≤1.5

CH3：≤1.5

CH4：≤1.5

CH5：≤1.5

CH6：≤1.5

CH1：≤0.8dB

CH2：≤1.1dB

CH3：≤1.1dB

CH4：≤1.1dB

CH5：≤1.1dB

CH6：≤1.1dB




Typical Hybrid HF/Electric Slip Ring
TypeModelHF ChannelsStd. Signals (S)Special SignalsCurrent Paths
Ethernet(100M/1000M/10000M)/SDI/USB2.0/USB3.0

Mini Type

(Capsule Slip Ring Integration)

LPC-1C1202

1//12*2A

LPC-1C2402

//24*2A

LPC-1C3002

//30*2A

LPC-1C3602

//36*2A
Medium Type (Throuhg-Bore Slip Ring Integration)

LPT000-1205-HF01

//12*5A

LPT000-0308-0204-12S-HF01

12/2*4A/3*8A

LPT000-1202-HF02

2
/12*2A

LPT000-0205-04S-01E3-HF02

41（1000M Ethernet）2*5A

LPT000-47S-3E2-HF03

3473（100M Ethernet）/

LPT000-0430-19S-HF03

19/4*30A

LPT000-0803-10S-02E2-HF04

4102（100M Ethernet）8*3A

LPT000-3602-HF05

5102（1000M Ethernet）30*5A/11*10A

LPT000-1010-06E2-HF06

6
6（100M Ethernet）10*10A



High Frequency Slip Rings Installation Guide

1.When installing the rotary joint, process the mounting holes on the stator side and rotor side according to the recommended size.

2.Install the rotary joint’s rotor side first. Lock the milling surface of the rotor side in the mounting bar of the rotor.

3.Then install the rotary joint’s stator side. Attach the stator mounting plate on the flange. Apply screws to secure the stator side flange. Secure the mounting plate to the application.

4.Adjust the concentricity of the rotary joint. Rotate the rotor side and ensure smooth operation of the unit. Ensure the axiality deviation between the rotary joint and the




Precautions:

1.Leave enough space between the rotor and stator to avoid squeezing of the two parts.

2.Stabilize the screws with locking measures to avoid loosening and dropping due to vibrations and shocks during operation.
