LPM-12 Miniature Capsule Slip Rings

copy Link

Facebook

Number of Circuits 12CKT

Insulation Resistance ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)

Voltage 110VAC/DC

Consult immediately

Model ListInstallationReview(0)

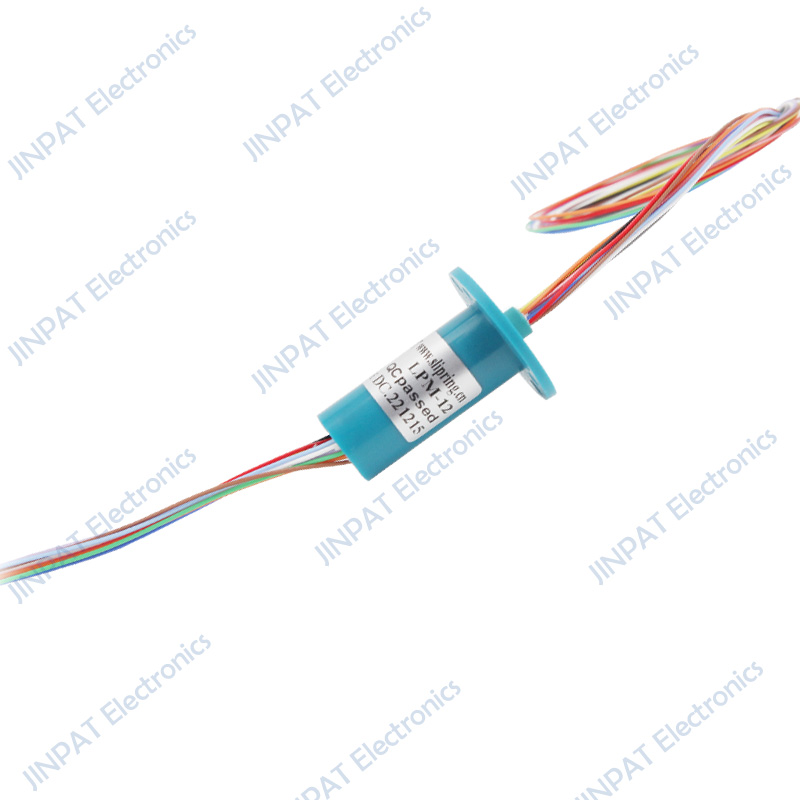

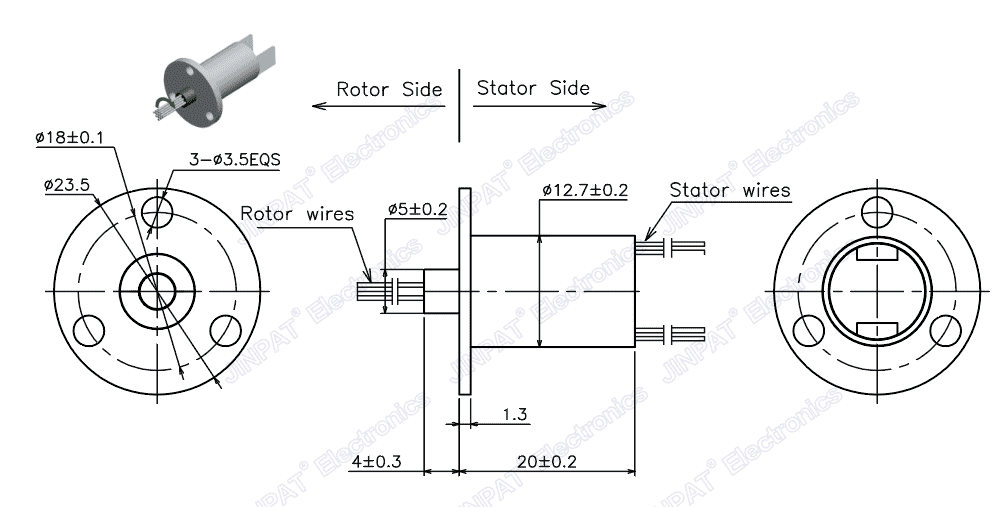

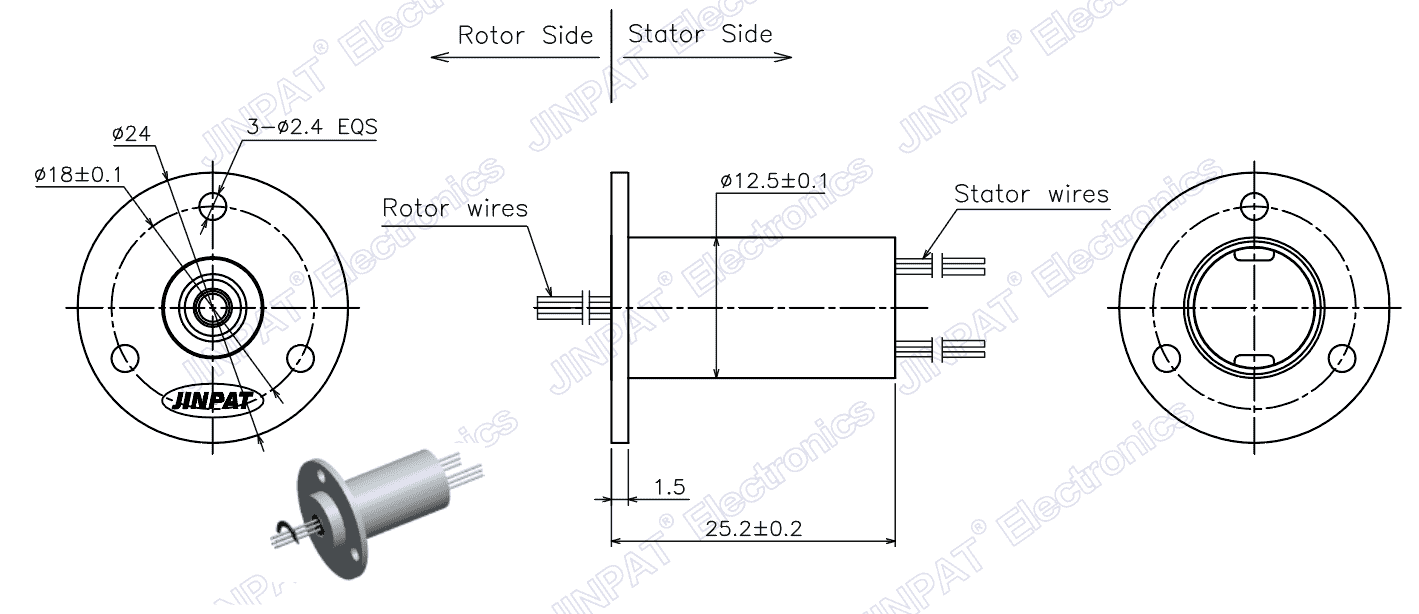

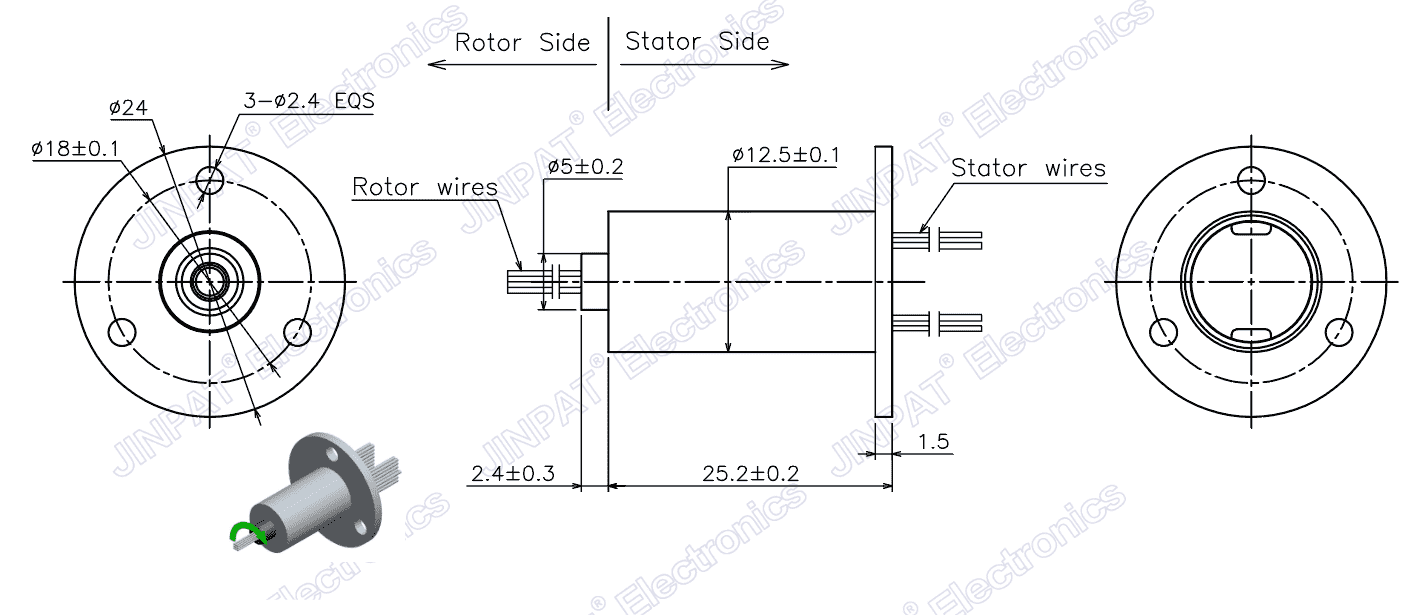

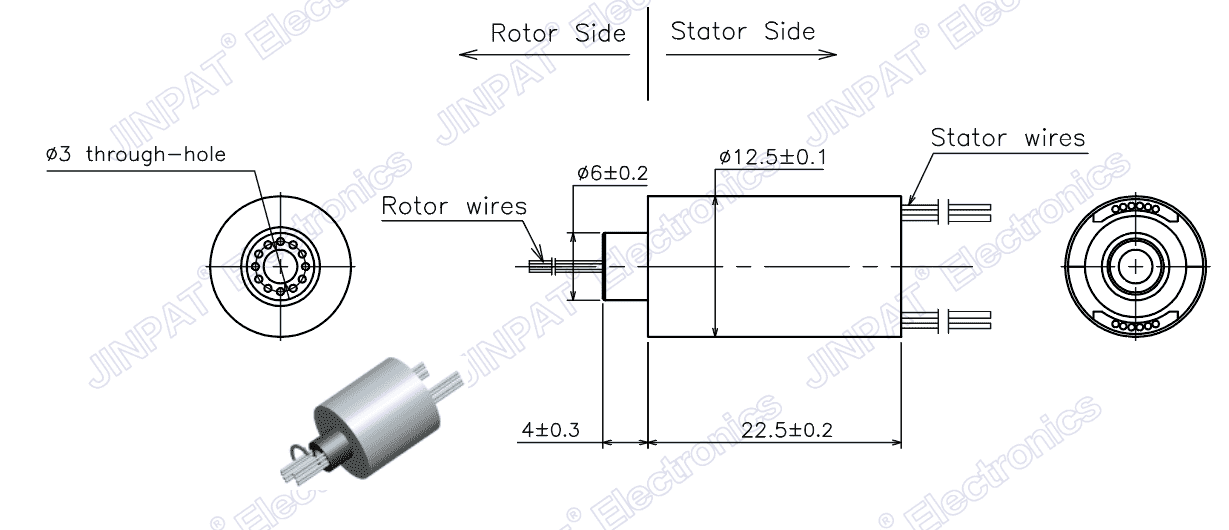

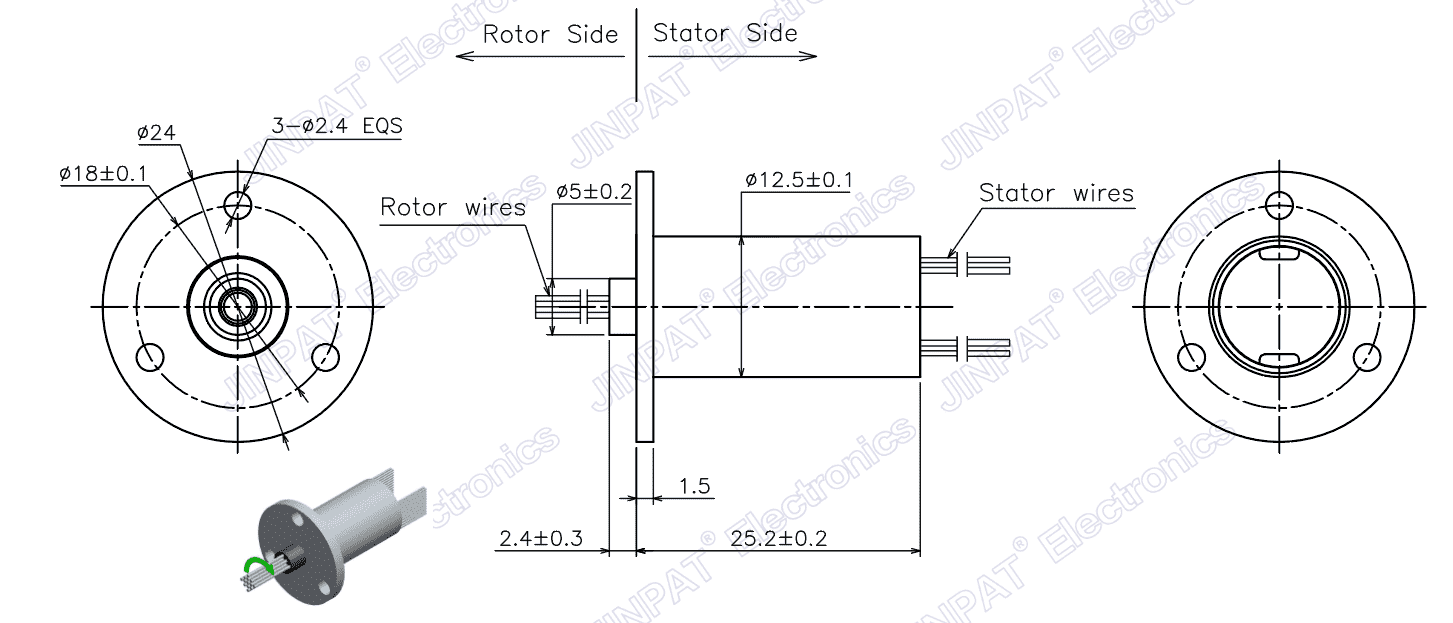

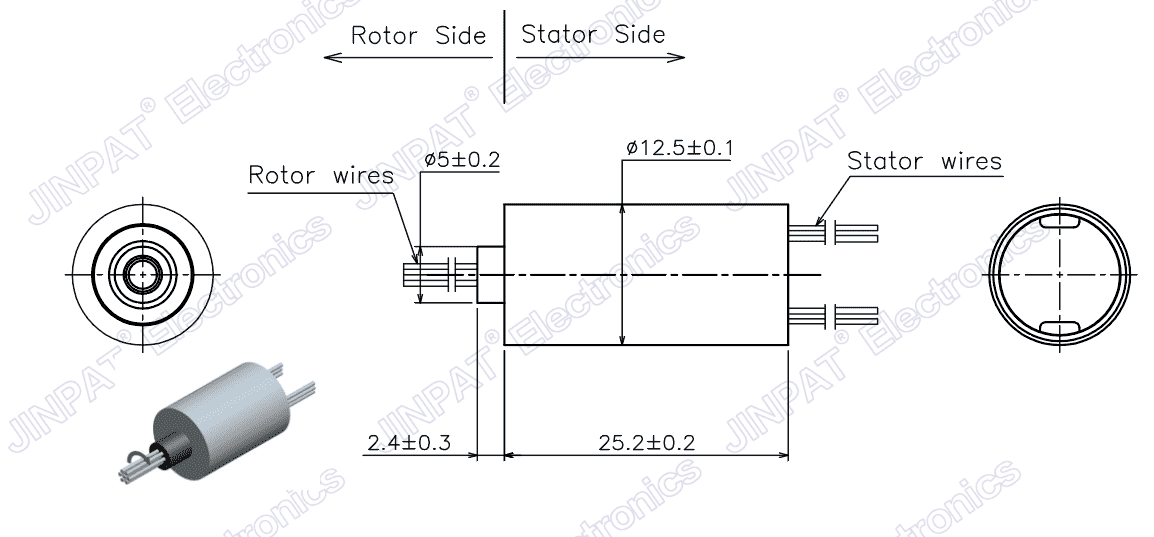

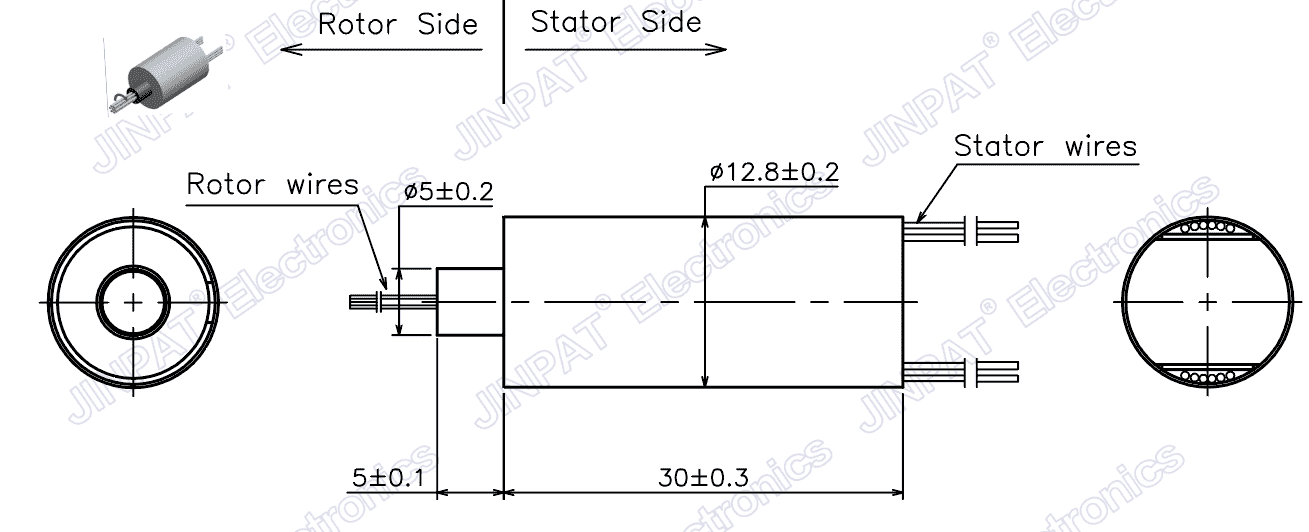

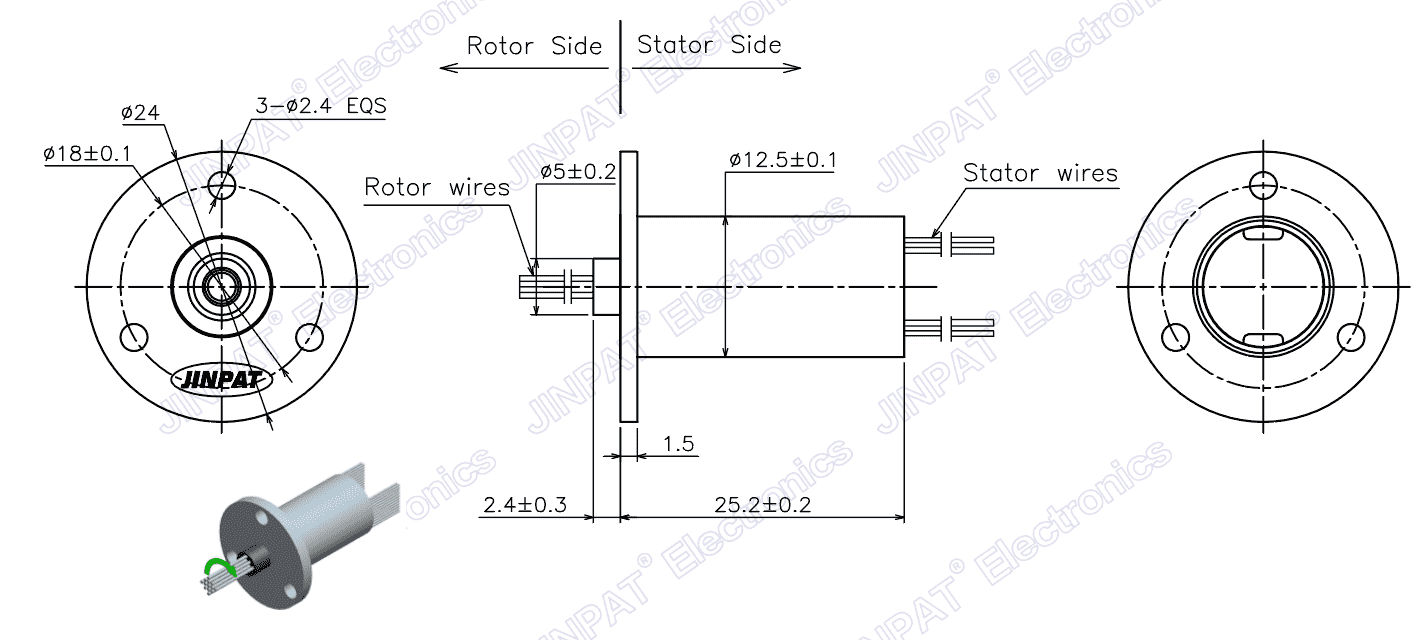

LPM-12/YB/YD/YJ/YL/YS/YT/YU Miniature Capsule Slip Rings

The LPM-12 capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-12A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuits model.

Electronic & Electric			Mechanical
Circuits	Total	12CKT	Working Speed	0~300rpm
	Detail	12X1A(You can go through 2A under certain circumstances )	Contact Material	Gold to Gold
Rating Voltage		110VAC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥200VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator: 250士5mm Rotor: 250士5mm
Insulation Resistance		≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Balue	≤35mΩ
Environment			Remarks
Working Temperature		-20°C~+60°	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note:"P" stands dor power, "S" stands for signal
