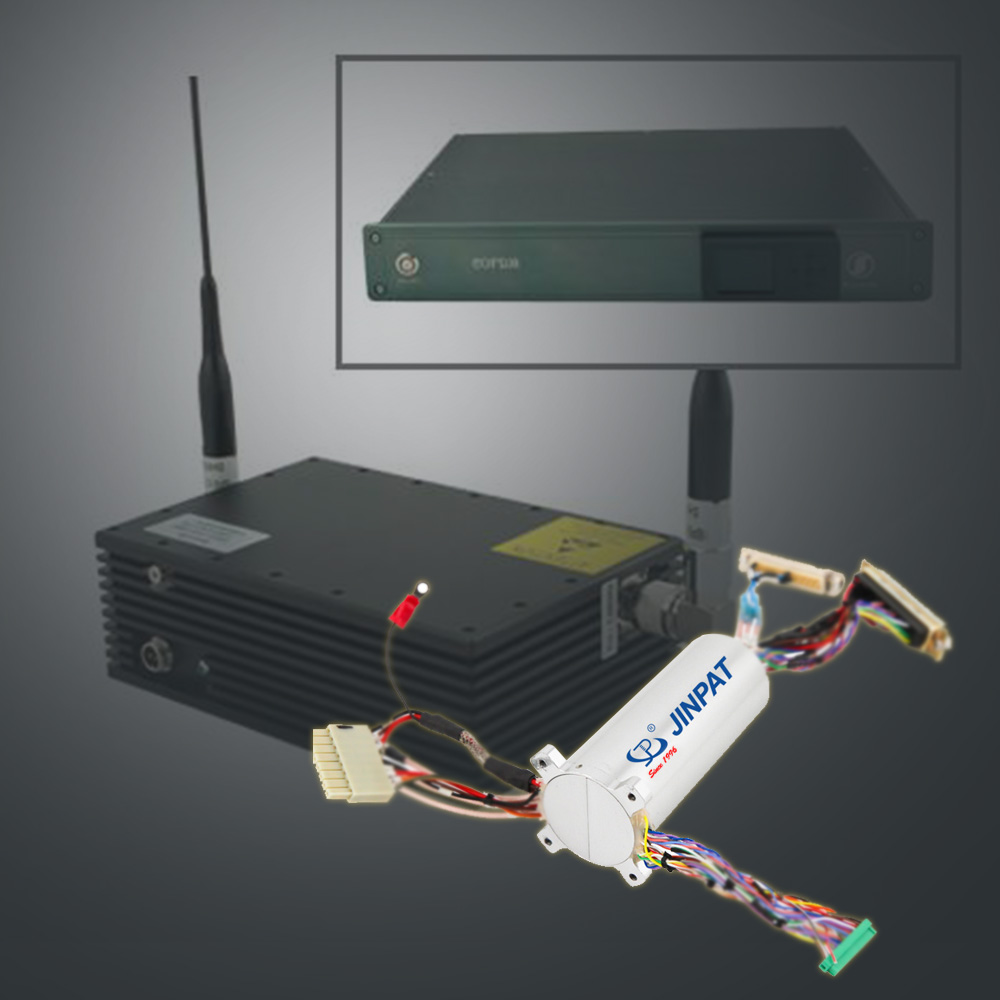

Common applications of JINPAT 18-30 LPC series capsule slip rings

As a core product independently developedby JINPAT, the capsule slip ring has undergone continuous technologicalupgrades, resulting in an expanding range of models, improved quality, andbroader application fields. Currently, JINPAT offers nearly 300 standard modelsof capsule slip rings, with the 18- to 30-circuit products in the LPC seriesstanding out as representative examples. These products feature moderate sizes,high cost-effectiveness, diverse models, and boast the highest annualproduction volume.

Renowned for their exceptional performance,the LPC-series capsule slip rings are widely used in small and medium-sizedelectromechanical equipment. A familiar application is their integration intospherical surveillance cameras installed in urban areas. These devicestypically employ 24-circuit capsule slip rings, where some circuits are twistedto support 100Mbps or Gigabit Ethernet signal transmission. For camerasrequiring SDI high-definition video signal transmission, JINPAT addresses thisby adding a 75Ω coaxial line to the slip ring. Similar applications includepipeline inspection robots, which extensively utilize the LPC-18 series.Additionally, the LPC-18 series is widely adopted in CCTV surveillancesystems.

In different applications, the LPC-18series demonstrates tailored features. For instance, in engineering measurementinstruments, it often appears as a customized model integrated with 100MbpsEthernet signal pathways. In medical equipment, certain slip rings arecustomized to meet multi-signal integration requirements. Furthermore, standardcapsule slip rings used in medical fields demand stricter control over dynamicresistance fluctuations—a specification fully met by JINPAT’s products.

The 30-circuit capsule slip rings, withtheir increased number of pathways, offer enhanced functionality and broaderapplicability. Both standard and customized models of these slip rings arewidely deployed in small-scale automated equipment. Such equipment often servesas critical components on production lines, though rarely visible to thepublic, and plays a vital role in industrial operations. The 30-circuit sliprings provide robust signal transmission and control capabilities, ensuringefficient and stable operation of production systems.
