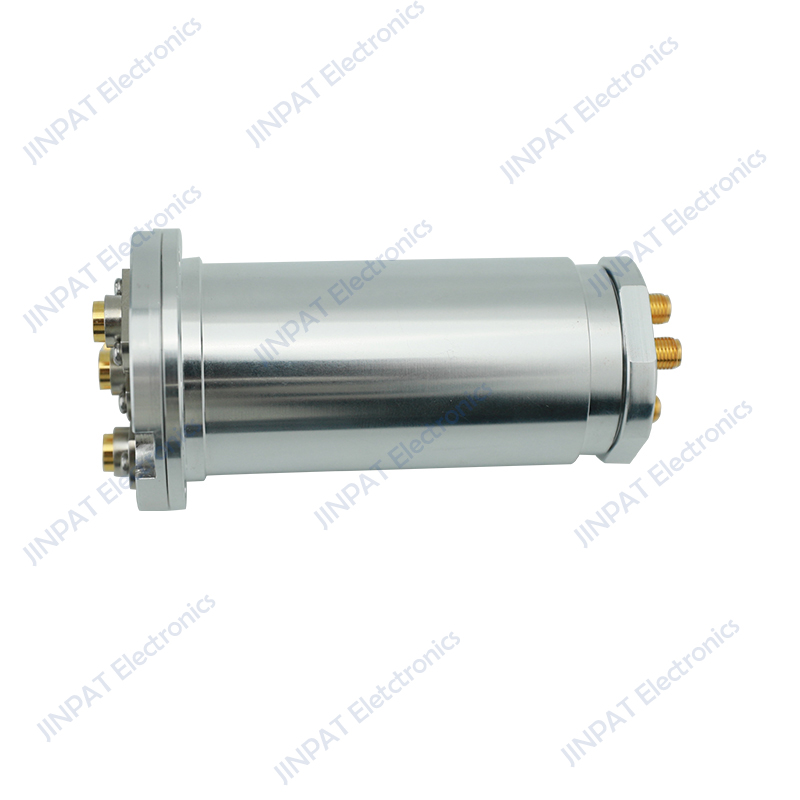

As a leading slip ring manufacturer, JINPAT specializes in the R&D and production of high-frequency slip rings, widely applied in precision equipment such as radar antennas and turntables. The LPHF-06E and LPHF-04E series slip rings, developed by JINPAT, demonstrate exceptional application value in high-end devices like radar antennas and turntables, thanks to their superior performance and innovative design.

These slip rings support transmission frequencies of up to 4GHz, meeting multi-channel signal transmission demands.The LPHF-06E can be configured with up to 4 independent channels, ensuring reliable high-frequency signal transmission for complex systems. Notably, both models achieve breakthroughs in miniaturization, setting an industry benchmark for compactness. Within a confined space of 100mm, approximately 250 components are densely integrated, optimizing volume and weight through intensive layout design. This makes them ideal for space-constrained scenarios requiring hybrid integration of multiple functions, offering novel solutions for system lightweighting and high-density assembly.

In terms of technical performance, the series excels with ultra-low insertion loss and voltage standing wave ratio(VSWR), ensuring stable and intact high-frequency signal transmission while minimizing signal attenuation. These features make them particularly suitable for radar systems with stringent signal quality requirements. Additionally, the slip rings boast industry-leading mechanical durability, with a maximum lifespan exceeding 5 million rotations, significantly extending maintenance intervals and reducing operational costs.

To address diverse demands in dynamic applications, the LPHF-04E slip ring innovates its interface design with a specialized structure tailored for environments involving moving components. It enhances mechanical adaptability without compromising high-frequency transmission performance, paving the way for integrated solutions in rotating platforms and mobile equipment. By combining precision manufacturing with advancedhigh-frequency transmission technology, JINPAT continues to push the performance boundaries of slip rings in high-end industrial applications.
