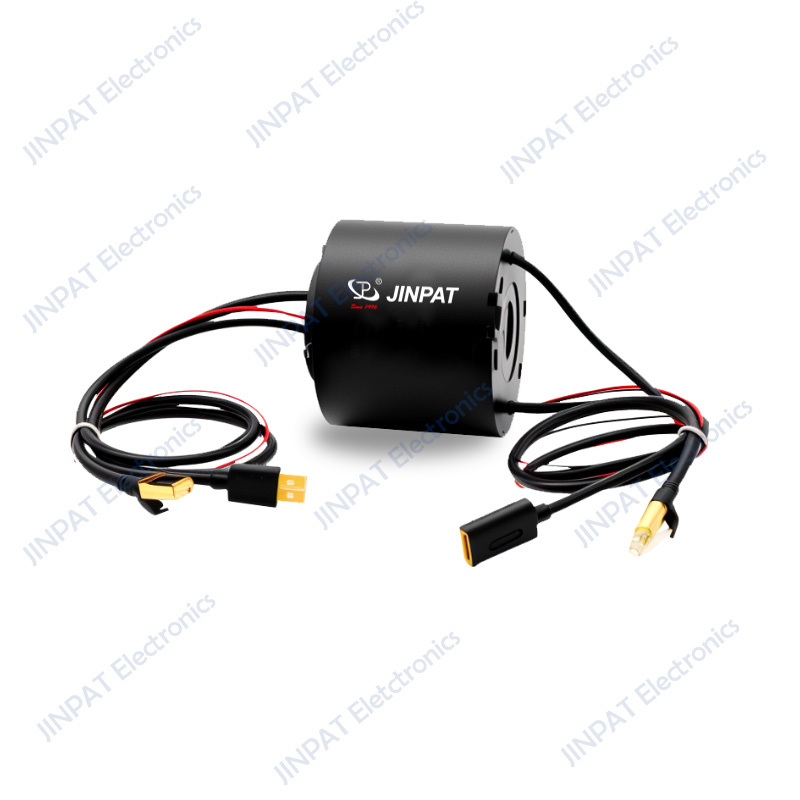

Ethernet Slip Rings

share
copy Link
Facebook
X
LinkedIn
Features:

• High-Speed Ethernet: Supports 100M/1G/10G Ethernet with stable data transmission, zero packet loss, and minimal signal degradation.
• Power & Data Combination: Includes power transfer with Ethernet data.
• Durable & Reliable: Built to withstand harsh environments and ensure stable performance.
• Compact Design: Space-saving and easy to integrate into various systems.
• Customizable Options: Tailored to meet specific needs, including Ethernet quantity, other signal types, current, voltage and connector types.
Consult immediately
Model ListInstallationReview(0)

Ethernet Slip Rings

Ethernet slip rings are electromechanical components designed to transmit Ethernet signals, power, and multiple data types seamlessly during 360° continuous rotation of equipment. Featuring a robust design with a rotating part (rotor) and a stationary part (stator), they ensure uninterrupted signal transfer through precision contact technology. These slip rings support 100Mbps,1Gbps, and 10Gbps Ethernet protocols, making them ideal for high-demand applications such as HD video surveillance, industrial automation, and aerospace systems. Available in multiple configurations — including through-bore slip rings (hollow-shaft), capsule slip rings (compact), separate slip rings (modular), and pancake slip rings (flat-profile) — all supporting integrated Ethernet channels, they adapt to diverse spatial and functional requirements.




Applications:

  • Robotics

  • Rotating Machinery

  • CCTV & Surveillance

  • Aerospace & Aviation

  • Medical Equipment

  • Automated Testing Systems


Customization & Services
Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request.

Can’t find a suitable model? Contact us for 24/7 technical support .

For detailed product specifications , refer to product datasheets or contact our sales team.

Optimized for global markets – Precision-engineered for reliability in mission-critical applications.


Ethernet Slip Rings(Through-bore Type)

TypeModel

ID (mm)

OD (mm)

Ethernet(Max. 8 channels)Current CircuitsIP
Ethernet Support

Ethernet

Channels(set)

5A/Signal10A15A
LPT025
LPT025-0605-01E(2-3)∅25.4∅86100M ✔ / 1G ✔ 16

IP50~IP68
LPT025-0610-01E(2-3)
6
LPT025-0615-01E(2-3)

6
LPT025-1205-01E(2-3)12

LPT025-1210-01E(2-3)
12
LPT025-1215-01E(2-3)

12
LPT025-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT025-0610-02E(2-3)
6
LPT025-0615-02E(2-3)

6
LPT025-1205-02E(2-3)12

LPT025-1210-02E(2-3)
12
LPT025-1215-02E(2-3)

12
LPT038LPT038-0605-01E(2-3)∅38.1∅99100M ✔ / 1G ✔ 16

IP50~IP68
LPT038-0610-01E(2-3)
6
LPT038-0615-01E(2-3)

6
LPT038-1205-01E(2-3)12

LPT038-1210-01E(2-3)
12
LPT038-1215-01E(2-3)

12
LPT038-0605-02E(2-3)100M ✔ / 1G ✔ 26


LPT038-0610-02E(2-3)
6
LPT038-0615-02E(2-3)

6
LPT038-1205-02E(2-3)12

LPT038-1210-02E(2-3)
12
LPT038-1215-02E(2-3)

12
LPT050
LPT050-0605-01E(2-3)∅50∅119100M ✔ / 1G ✔ 16

IP50~IP68
LPT050-0610-01E(2-3)
6
LPT050-0615-01E(2-3)

6
LPT050-1205-01E(2-3)12

LPT050-1210-01E(2-3)
12
LPT050-1215-01E(2-3)

12
LPT050-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT050-0610-02E(2-3)
6
LPT050-0615-02E(2-3)

6
LPT050-1205-02E(2-3)12

LPT050-1210-02E(2-3)
12
LPT050-1215-02E(2-3)

12
LPT060LPT060-0605-01E(2-3)∅60∅135100M ✔ / 1G ✔ 16

IP50~IP68
LPT060-0610-01E(2-3)
6
LPT060-0615-01E(2-3)

6
LPT060-1205-01E(2-3)12

LPT060-1210-01E(2-3)
12
LPT060-1215-01E(2-3)

12
LPT060-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT060-0610-02E(2-3)
6
LPT060-0615-02E(2-3)

6
LPT060-1205-02E(2-3)12

LPT060-1210-02E(2-3)
12
LPT060-1215-02E(2-3)

12
LPT070LPT070-0605-01E(2-3)∅70∅135100M ✔ / 1G ✔ 16

IP50~IP68
LPT070-0610-01E(2-3)
6
LPT070-0615-01E(2-3)

6
LPT070-1205-01E(2-3)12

LPT070-1210-01E(2-3)
12
LPT070-1215-01E(2-3)

12
LPT070-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT070-0610-02E(2-3)
6
LPT070-0615-02E(2-3)

6
LPT070-1205-02E(2-3)12

LPT070-1210-02E(2-3)
12
LPT070-1215-02E(2-3)

12
LPT080LPT080-0605-01E(2-3)∅80∅160100M ✔ / 1G ✔ 16

IP50~IP68
LPT080-0610-01E(2-3)
6
LPT080-0615-01E(2-3)

6
LPT080-1205-01E(2-3)12

LPT080-1210-01E(2-3)
12
LPT080-1215-01E(2-3)

12
LPT080-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT080-0610-02E(2-3)
6
LPT080-0615-02E(2-3)

6
LPT080-1205-02E(2-3)12

LPT080-1210-02E(2-3)
12
LPT080-1215-02E(2-3)

12
LPT096LPT096-0605-01E(2-3)∅96∅185100M ✔ / 1G ✔ 16

IP50~IP68
LPT096-0610-01E(2-3)
6
LPT096-0615-01E(2-3)

6
LPT096-1205-01E(2-3)12

LPT096-1210-01E(2-3)
12
LPT096-1215-01E(2-3)

12
LPT096-0605-02E(2-3)100M ✔ / 1G ✔ 26

LPT096-0610-02E(2-3)
6
LPT096-0615-02E(2-2)

6
LPT096-1205-02E(2-3)12

LPT096-1210-02E(2-3)
12
LPT096-1215-02E(2-3)

12
Model numbers decode key specs: For example, "LPT096-1215-02E(2-3)" breaks down as LPT (Through-bore type), 096mm inner diameter, 12 circuits at 15A, and 2 Ethernet channels (E4=10G; E2=100M, E3=1G).




Ethernet Slip Rings(Capsule Type)
TypeModelOD (mm)EthernetCurrent IP
Ethernet Support

Ethernet Channels

(set)

Current Rating(A)

Current Circuits
LPC-06LPC-06-01E2Φ22100Mbps ✔ 1//IP40~IP68
LPC-12LPC-12-0602-01E2Φ22100Mbps ✔ 12A6IP40~IP68
LPC-12-0205-01E2100Mbps ✔ 15A2
LPC-12-01E31Gbps ✔ 1//
LPC-18LPC-18-0602-02E2Φ22100Mbps ✔ 22A
6IP40~IP68
LPC-18-0602-01E31Gbps ✔ 12A6
LPC-18-0305-02E2100Mbps ✔ 25A3
LPC-18-0305-01E31Gbps ✔15A3
LPC-18-0210-01E2100Mbps ✔ 110A2
LPC-18-0210-01E31Gbps ✔110A2
LPC-18-01E42.5G✔ / 5G✔ / 10Gbps ✔1//
LPC-24LPC-24-1202-02E2Φ22100Mbps ✔22A12IP40~IP68
LPC-24-1202-01E31Gbps ✔12A12
LPC-24-0405-02E2100Mbps ✔25A4
LPC-24-0405-01E31Gbps ✔15A4
LPC-24-0310-02E2100Mbps ✔210A3
LPC-24-0310-01E31Gbps ✔110A3
LPC-24-0602-01E42.5G✔ / 5G✔ / 10Gbps ✔12A6
LPC-30LPC-30-2002-02E2Φ22100Mbps ✔22A20IP40~IP68
LPC-30-2002-01E31Gbps ✔12A20
LPC-30-0605-02E2100Mbps ✔25A6
LPC-30-0605-01E31Gbps ✔15A6
LPC-30-0410-02E2100Mbps ✔210A4
LPC-30-0410-01E31Gbps ✔110A4
LPC-30-1202-01E42.5G✔ / 5G✔ / 10Gbps ✔12A12
LPC-30-0405-01E42.5G✔ / 5G✔ / 10Gbps ✔15A4
LPC-30-0210-01E42.5G✔ / 5G✔ / 10Gbps ✔110A2
LPC-36LPC-36-2402-02E2Φ22100Mbps ✔22A24IP40~IP68
LPC-36-2402-01E31Gbps ✔12A24
LPC-36-0605-03E2100Mbps ✔35A6
LPC-36-0605-02E31Gbps ✔25A6
LPC-36-0510-02E2100Mbps ✔210A5
LPC-36-0510-01E31Gbps ✔110A5
LPC-36-02E42.5G✔ / 5G✔ / 10Gbps ✔2//
LPC-56LPC-56-3002-04E2Φ25100Mbps ✔42A30IP40~IP68
LPC-56-3002-02E31Gbps ✔22A30
LPC-56-1205-04E2100Mbps ✔45A12
LPC-56-1205-02E31Gbps ✔25A12
LPC-56-0610-04E2100Mbps ✔410A6
LPC-56-0610-02E31Gbps ✔210A6
LPC-56-06E32.5G✔ / 5G✔ / 10Gbps ✔6//
LPC-76LPC-76-3002-06E2Φ35.5100Mbps ✔62A30IP40~IP68
LPC-76-3002-04E31Gbps ✔42A30
LPC-76-1205-06E2100Mbps ✔65A12
LPC-76-1205-04E31Gbps ✔45A12
LPC-76-0610-02E2100Mbps ✔210A6
LPC-76-0610-01E31Gbps ✔110A6
LPC-76-0615-04E2100Mbps ✔415A6
LPC-76-0615-02E31Gbps ✔215A6
LPC-76-0620-02E2100Mbps ✔220A6
LPC-76-0620-01E31Gbps ✔120A6
LPM-06LPM-06-01E2Φ12.5100Mbps ✔1//IP40~IP68
LPM-12LPM-12-0402-01E2Φ12.5100Mbps ✔12A4IP40~IP68
LPM-12-0105-01E2100Mbps ✔15A1
LPM-12-01E31Gbps ✔1//
LPM-18LPM-18-1201-01E2Φ12.5100Mbps ✔11A12IP40~IP68
LPM-18-0601-02E2100Mbps ✔21A6
LPM-18-0601-01E31Gbps ✔11A6
LPM-18-0205-02E2100Mbps ✔25A2
LPM-18-0205-01E31Gbps ✔15A2
LPM-24LPM-24-0601-03E2Φ15.5100Mbps ✔31A6IP40~IP68
LPM-24-0601-02E31Gbps ✔21A6
LPM-24-1201-02E2100Mbps ✔21A12
LPM-24-1201-01E31Gbps ✔11A12
LPM-24-0305-01E2100Mbps ✔15A3
LPM-24-0305-01E31Gbps ✔15A3
LPM-30LPM-30-0601-04E2Φ16100Mbps ✔41A6IP40~IP68
LPM-30-0601-04E31Gbps ✔41A6
LPM-30-1201-03E2100Mbps ✔31A12
LPM-30-1201-02E31Gbps ✔21A12
LPM-30-0405-02E2100Mbps ✔25A4
LPM-30-0405-01E31Gbps ✔15A4
LPMS-06LPM-06-01E2Φ7.9100Mbps ✔1//Customizable
LPMS-08LPM-08-0301-01E2Φ5.5100Mbps ✔11A3Customizable
LPMS-12LPMS-12-0701-01E2Φ6.5100Mbps ✔11A7Customizable
LPMS-12-0201-02E2100Mbps ✔21A2
LPMS-15LPMS-15-1001-01E2Φ7.6100Mbps ✔11A10Customizable
LPMS-15-0501-02E2100Mbps ✔21A5
LPMS-15-0601-01E31Gbps ✔11A6
LPMS-18LPMS-18-0601-02E2Φ7.98100Mbps ✔21A6Customizable
LPMS-18-1201-01E2100Mbps ✔11A12
LPMS-18-0901-01E31Gbps ✔11A9
LPT-18-02E31Gbps ✔2//
Model Decoding: Example: "LPC-30-0210-01E4" = LPC (Capsule type), 30 total channels, 2×10A power circuits, and 1×10G Ethernet (E4=10G; E2=100M, E3=1G).
